Let’s explore some cool charts we can make in {ggplot2}.
Published

March 28, 2021

A person working in fields of colorful tulips with houses in the background

Vincent Van Gogh, Flower Beds in Holland (1883)

R users are incredibly fortunate to work in an open-source community that creates and shares resources that make our work even better. The {ggplot2} package comes with incredibly useful geoms (geometric objects) to create visualizations. A full list of these can be found in the reference documents for {ggplot2}. These include:

In addition, other amazing folks in the R Community have created geoms that can be used with {ggplot2} and similarly use the tidyverse framework. This is fantastic for many reasons, but some include being able to add themes, facets, titles, and other components just like with any ggplot. Here are a few geoms that I’ve tried out with examples!

Waffle plot, steamgraph, density graph, beeswarm, and mosaic plot

Setup

To be able to run this code, be sure to have the tidyverse installed. The {wesanderson} package contains beautiful palettes for visualizations.

# Load required packages

library(tidyverse)
library(wesanderson)

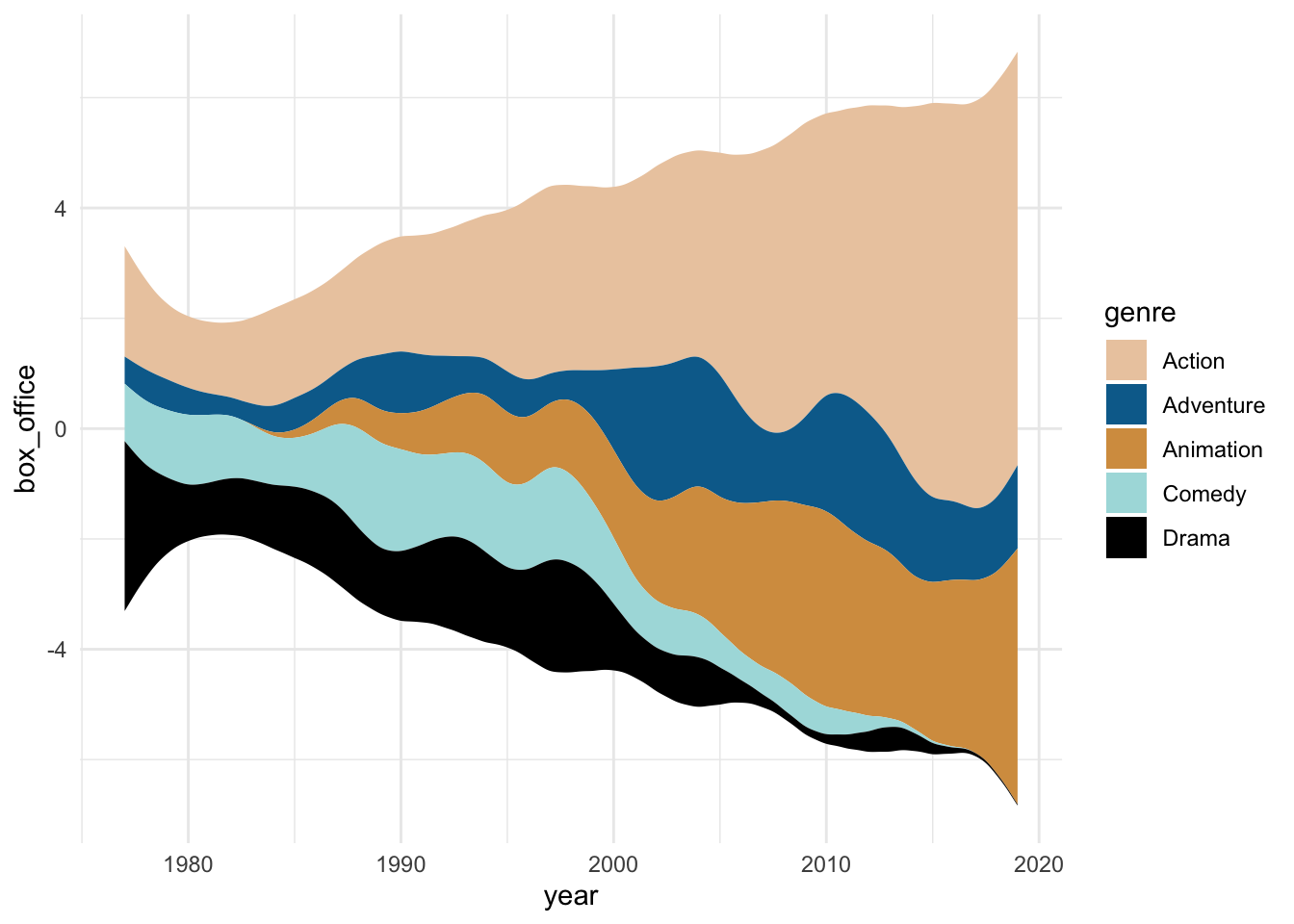

Streamgraphs

This post includes three of David Sjöberg’s amazing geoms; he created {ggsankey}, {ggstream}, AND {ggbump}. If you haven’t seen his GitHub, please check it out now.

This first geom, geom_stream(), creates a streamplot (which I’ve also seen called stream graphs). The streamplot is an area graph that usually centers around a central axis and allows us to see large fluctuations over time. More information on streamplot can be found here.

{ggstream} also has other options available to customize the streamgraphs, such as creating an area chart. Check out the repo here.

# remotes::install_github("davidsjoberg/ggstream")
library(ggstream)

ggplot(blockbusters, aes(year, box_office, fill = genre)) +
  geom_stream() +
  scale_fill_manual(values = wes_palette("Darjeeling2")) +
  theme_minimal()

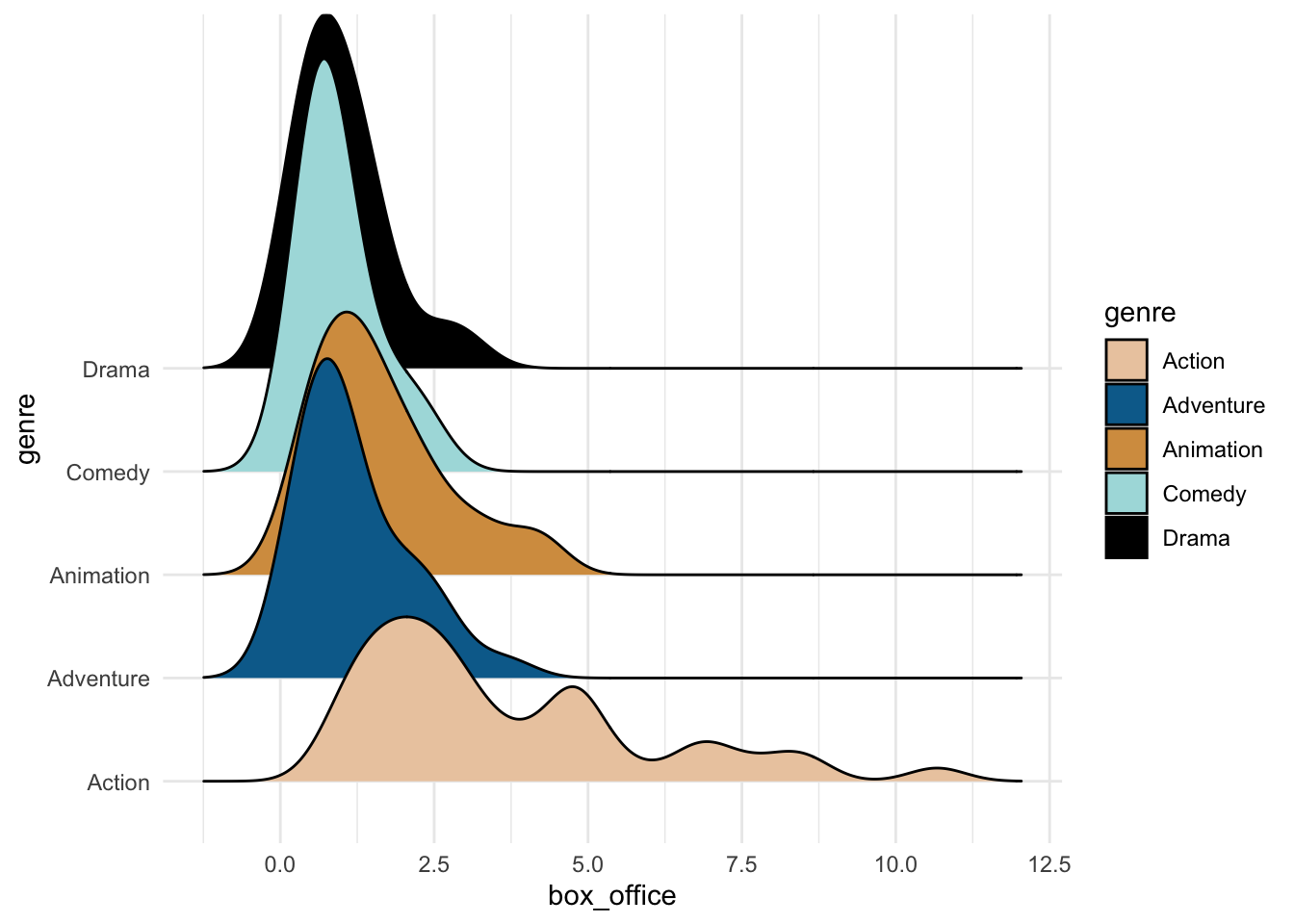

Ridgeline plots

The {ggridges} package by Claus O. Wilke package also has a variety of geoms; check out the repo here. Ridgeline plots show the distribution of a numeric value for different groups and can look like mountain ranges. The R-Ladies Seattle hex sticker was created using ridgelines (very appropriate for the mountainous Washington!).

# install.packages("ggridges")
library(ggridges)

ggplot(blockbusters, aes(x = box_office, y = genre, fill = genre)) +
  geom_density_ridges(scale = 4) +
  scale_fill_manual(values = wes_palette("Darjeeling2")) +
  theme_minimal()

Sankey diagrams

Another geom by David Sjöberg is geom_sankey(), repo here. This geom creates Sankey diagrams and alluvial plots, which show flow and transfers in a system or throughout time. These plots are VERY popular on the subreddit dataisbeautiful (check it out on Mondays to see some examples).

# devtools::install_github("davidsjoberg/ggsankey")
library(ggsankey)

example_dat <-
  mtcars %>%
  make_long(cyl, vs, am, gear, carb) # function in ggsankey to format data correctly

ggplot(example_dat,
       aes(x = x,
               next_x = next_x,
               node = node,
               next_node = next_node,
               fill = factor(node))) +
   geom_sankey(flow.alpha = .6) +
  theme_minimal()

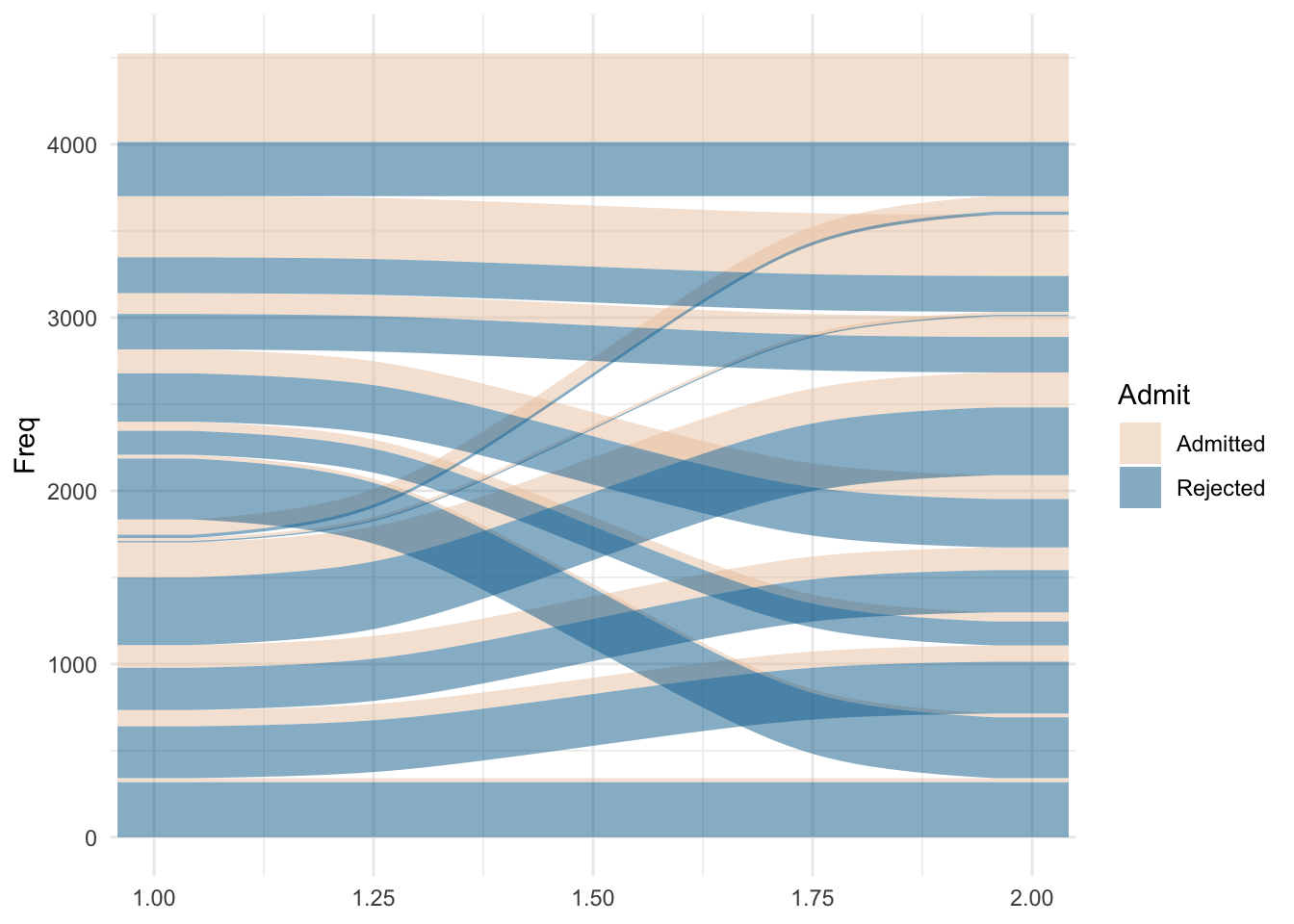

Another package for alluvial charts is {ggalluvial} by Jason Cory Brunson, with its repo here. The data can be in more familiar formats than what is required for {ggsankey}.

# install.packages("ggalluvial")
library(ggalluvial)

ggplot(as.data.frame(UCBAdmissions),
       aes(y = Freq, axis1 = Gender, axis2 = Dept)) +
  geom_alluvium(aes(fill = Admit), width = 1/12) +
  scale_fill_manual(values = wes_palette("Darjeeling2")) +
  theme_minimal()

Bump charts

One last one by David Sjöberg is the amazing {ggbump}, repo here. Bump plots help show change in rank over time.

# devtools::install_github("davidsjoberg/ggbump")
library(ggbump)

blockbusters2 <-
  blockbusters %>%
  filter(genre %in% c("Action", "Comedy", "Drama")) %>%
  group_by(year) %>%
  mutate(rank = rank(box_office))

ggplot(blockbusters2, aes(year, rank, color = genre)) +
  geom_point(size = 7) +
  geom_bump() +
  scale_color_manual(values = wes_palette("Darjeeling2")) +
  theme_minimal()

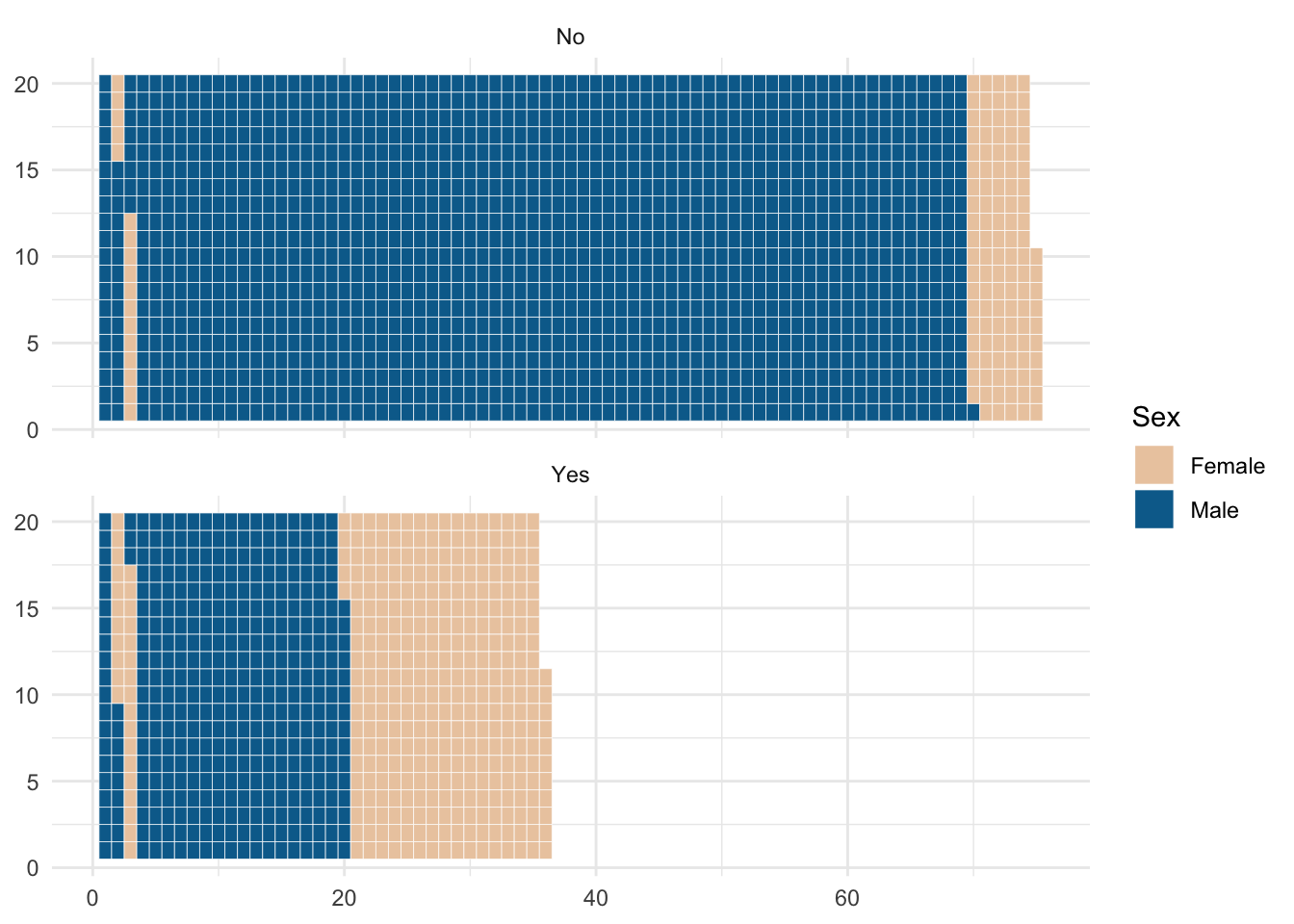

Waffle charts

For waffle charts, which are handy visualizations that show completion or parts of a whole, there is hrbrmstr’s {waffle}. The repo is here. Check out the ability to bring in other {ggplot2} functions, like facet_wrap. {waffle} also allows you to create pictograms using geom_pictogram, which replaces the squares in the ‘waffle’ with pictures.

# install.packages("waffle", repos = "https://cinc.rud.is")
library(waffle)

ggplot(as_tibble(Titanic), aes(fill = Sex, values = n)) +
  geom_waffle(n_rows = 20, color = "white") +
  facet_wrap(~ Survived, ncol = 1)  +
  scale_fill_manual(values = wes_palette("Darjeeling2")) +
  theme_minimal()

Beeswarm charts

Beeswarm charts, similar to jitter plots in {ggplot2}, plot individual points showing distributions without allowing the points to overlap too much. Erik Clarke’s repo for {ggbeeswarm} is here.

# install.packages("ggbeeswarm")
library(ggbeeswarm)

ggplot(blockbusters, aes(x = genre, y = box_office, color = genre)) +
  geom_quasirandom() +
  theme_minimal() +
  scale_color_manual(values = wes_palette("Darjeeling2")) +
  theme_minimal()

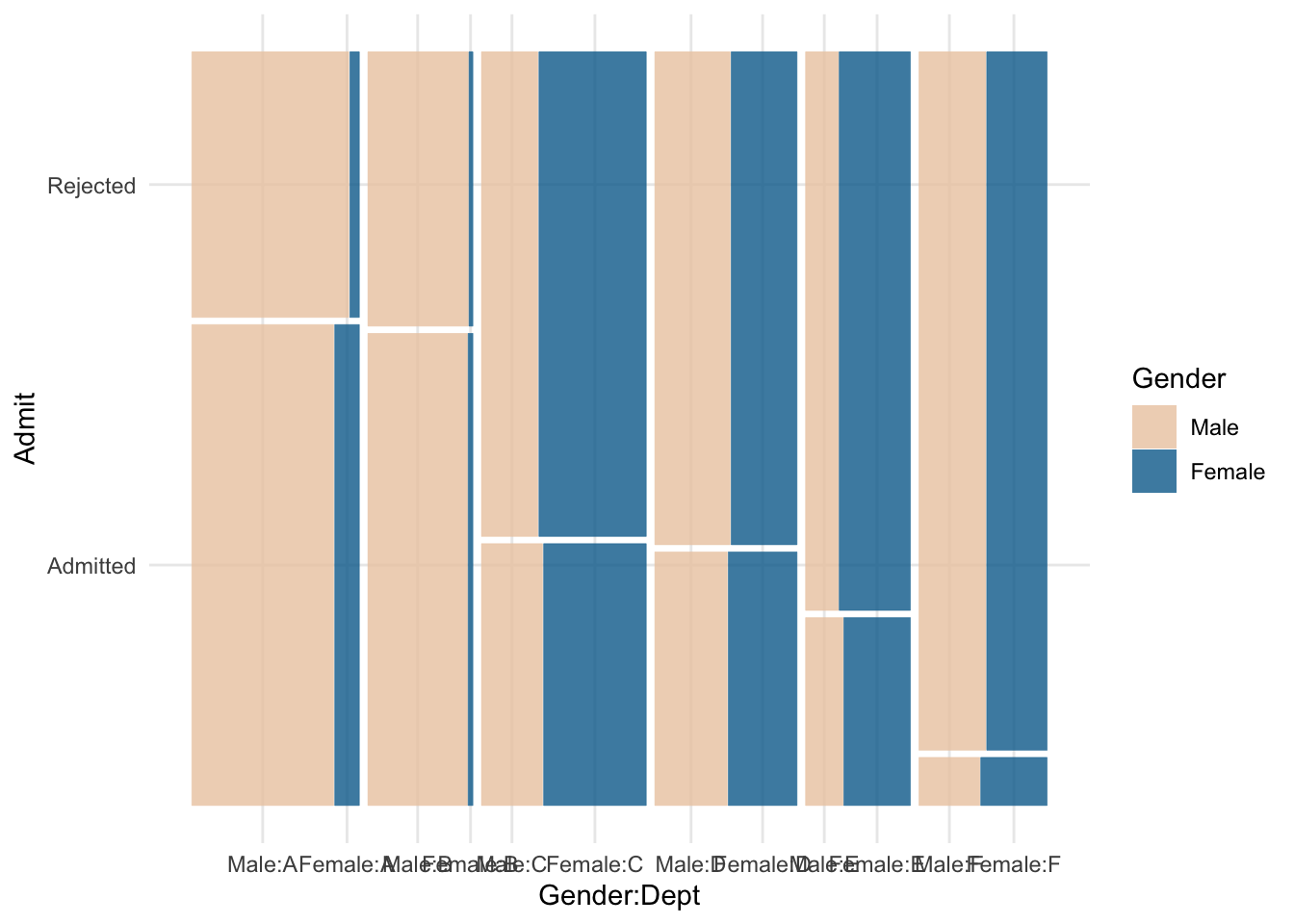

Mosaic charts

Mosaic charts are incredibly helpful when displaying proportions of (multiple) categories. The {ggmosaic} package by Haley Jeppson (repo here) uses geom_mosaic to create these visualizations.

# devtools::install_github("haleyjeppson/ggmosaic")
library(ggmosaic)

ggplot(as.data.frame(UCBAdmissions)) +
  geom_mosaic(aes(x = product(Admit, Dept), fill = Gender, weight = Freq)) +
  scale_fill_manual(values = wes_palette("Darjeeling2")) +
  theme_minimal()

Other geoms

I know there exist a ton of other geoms that work with {ggplot2} out there. Just as I was writing this blogpost, I discovered {gghilbertstrings}! What other gg packages or geoms do you know of? Let me know on Twitter and I’ll list them here!
